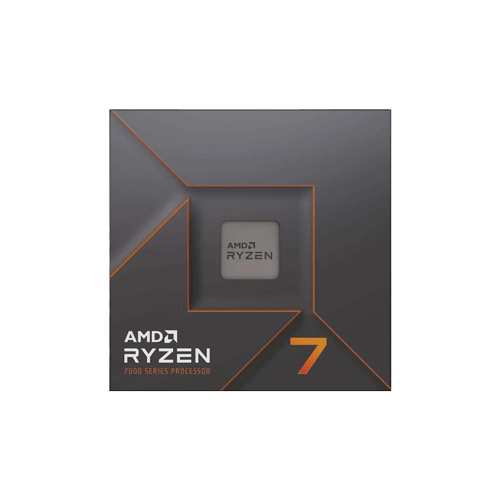

AMD RYZEN 7 7800X3D PROCESSOR (8 cores/16 threads)

Description

AMD RYZEN™ 7 7800X3D PROCESSOR

(8 Cores / 16 Threads)

The AMD Ryzen™ 7 7800X3D is a flagship enthusiast-class desktop processor designed for extreme gaming and high-performance workloads. Powered by Zen 4 architecture and AMD’s revolutionary 3D V-Cache technology, it delivers exceptional gaming performance with ultra-low latency and massive cache capacity.

Featuring 8 cores and 16 threads, boost clocks of up to 5.0GHz, and a huge 96MB L3 cache, the 7800X3D is optimized for modern AAA gaming, streaming, and content creation. Built on TSMC 5nm technology and designed for the AM5 platform, it supports DDR5 memory, PCIe® 5.0, and next-generation connectivity.

Note: Thermal solution is not included. A liquid cooler is recommended for optimal performance.

---

General Specifications

• Processor Name: AMD Ryzen™ 7 7800X3D

• Series: Ryzen 7000 Series

• Architecture: Zen 4

• Codename: Raphael (AM5)

• Form Factor: Desktop, Boxed Processor

• Market Segment: Enthusiast Desktop

• Launch Date: 04/06/2023

Performance

• CPU Cores: 8

• Threads: 16

• Base Clock: 4.2 GHz

• Max Boost Clock: Up to 5.0 GHz

• L1 Cache: 512 KB

• L2 Cache: 8 MB

• L3 Cache: 96 MB

• Default TDP: 120W

• Max Operating Temperature (Tjmax): 89°C

Processor Technology

• CPU Core Process: TSMC 5nm FinFET

• I/O Die Process: TSMC 6nm FinFET

• CCD Size: 71mm²

• IOD Size: 122mm²

• Package Die Count: 2

Platform & Compatibility

• CPU Socket: AM5

• Supported Chipsets:

  • A620

  • B650 / B650E

  • X670 / X670E

• PCI Express® Version: PCIe® 5.0

• Native PCIe® Lanes: 28 (24 usable)

Memory Support

• Memory Type: DDR5

• Memory Channels: 2

• Max Memory Capacity: 128GB

• Max Memory Speed:

  • 2×1R DDR5-5200

  • 2×2R DDR5-5200

  • 4×1R DDR5-3600

  • 4×2R DDR5-3600

• ECC Support: Yes (Motherboard dependent)

• AMD EXPO™ Memory Overclocking: Supported

Graphics Capabilities

• Integrated Graphics: AMD Radeon™ Graphics

• Graphics Cores: 2

• Graphics Frequency: 2200 MHz

• USB-C DisplayPort™ Alt Mode: Yes

Connectivity

• USB 3.2 Gen 2 (10Gbps): 4 Ports

• USB 3.2 Gen 1 (5Gbps): 0

• USB 2.0: 1 Port

• SATA Ports: 0

• NVMe Support: Boot, RAID 0 / 1 / 10

Supported Technologies

• AMD EXPO™ Technology

• Precision Boost 2

• Precision Boost Overdrive

• Curve Optimizer

• AMD Ryzen™ Master Support

Operating System Support

• Windows 11 (64-bit)

• Windows 10 (64-bit)

• Ubuntu x86 64-bit

• RHEL x86 64-bit
