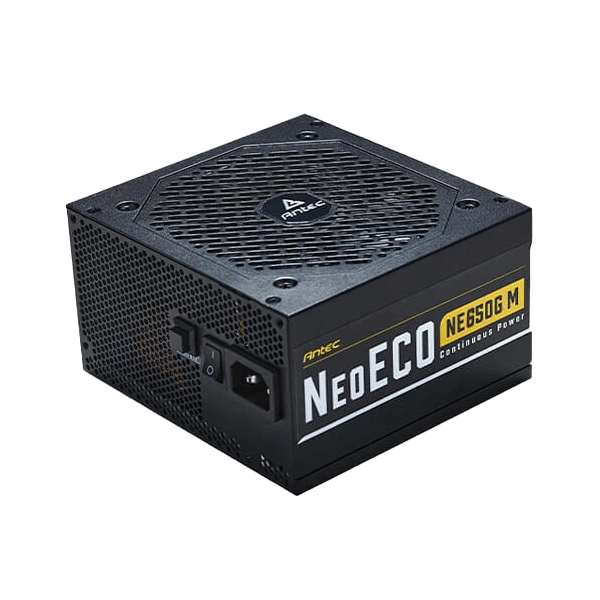

ANTEC NEOECO NE650G M 650W gold modular power supply

Description

Product Name NE650G M
Model Name X7000A078-20
Type ATX 12V 2.4
Modular Fully
Dimension 150(L) x 140(W) x 86(H)
Input Voltage 100-240 VAC
Input Current 10A MAX
Input Frequency Range 50Hz-60Hz
PFC Active PFC
Power Good Signal 100-500ms
Efficiency Up To 92%
Protection OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
Output Capacity 650W
Operation Temperature 0 ~ 40°C
Regulatory cTUVus / TUV / CB / RCM / CE / FCC /
BIS / BSMI / UKCA / ICES
Fan 120mm Silence Fan
Certifications 80 Plus Gold
Connector 1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
4 x 8(6+2) Pin PCI-E
8 x SATA
3 x Molex
1 x FDD
Net Weight 1.30 kgs
Gross Weight 2.50 kgs
