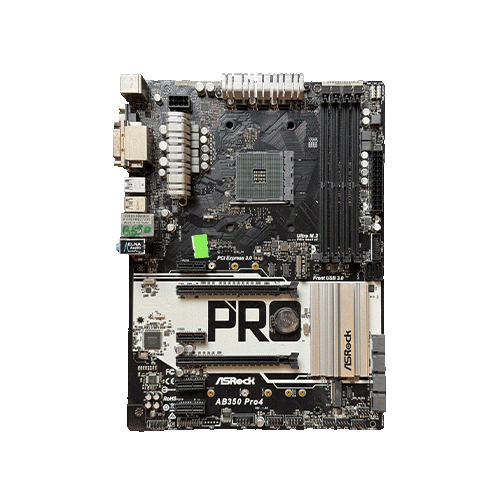

USED ASROCK PRO B350 M.2 4RAM SLOT GAMING MOTHERBOARD

Description

AMD B350 AM4 ATX Motherboard – DDR4 64GB, Dual M.2, USB 3.1 Type-C, RGB

Build a powerful AMD Ryzen gaming PC with this AMD B350 chipset ATX motherboard, designed for AM4 socket processors including Ryzen 1st/2nd/3rd Gen (Summit Ridge, Pinnacle Ridge, Picasso, Raven Ridge, Matisse) and A-Series APUs (Bristol Ridge). With a strong 9-phase digital power design, it delivers stable performance for gaming, productivity, and multitasking.

This motherboard supports up to 64GB DDR4 dual-channel memory, includes Super M.2 (PCIe Gen3 x4) for ultra-fast NVMe SSD speed, and offers a second M.2 SATA slot for extra storage expansion. It also features USB 3.1 Gen1 Type-C, 7.1 HD Audio (ALC892 + ELNA capacitors), and Gigabit LAN, making it a great choice for budget and mid-range Ryzen builds.

---

✅ Key Features

• Socket: AMD AM4

• Chipset: AMD Promontory B350

• Form Factor: ATX (30.5cm x 22.4cm)

• Power Design: 9-Phase Digital Power

• CPU Support: Ryzen + A-Series APUs (AM4)

• Memory: 4 x DDR4 DIMM (Dual Channel)

• Max RAM: Up to 64GB

• RGB: RGB Header + AMD Fan LED Header

---

⚡ Storage & Speed

• 1 x Super M.2 (PCIe Gen3 x4 NVMe) (up to 32Gb/s)

• 1 x M.2 SATA Slot

• 6 x SATA 6Gb/s (4 chipset + 2 ASM1061)

• RAID Support: RAID 0 / 1 / 10

• NVMe Boot Support: ✅ Yes

---

🎮 Expansion Slots

• 2 x PCIe 3.0 x16 Slots (x16 / x4 depending on CPU)

• 4 x PCIe 2.0 x1 Slots

• CrossFire Support: ✅ AMD Quad CrossFireX

---

🔌 Rear I/O Ports

• HDMI + DVI-D + VGA (D-Sub)

• USB 3.1 Gen1 Type-C

• 5 x USB 3.1 Gen1

• 2 x USB 2.0

• RJ-45 Gigabit LAN

• HD Audio Jacks (Line In / Line Out / Mic)

• PS/2 Combo Port

✅ Supports 3 displays simultaneously (APU required)

---

🔊 Audio & Network

• Audio: Realtek ALC892 (7.1 Channel) + ELNA Audio Capacitors

• LAN: Realtek RTL8111GR Gigabit LAN (10/100/1000)

• Protection: Anti-surge / Anti-lightning / ESD protection
