This ZIMA 1200VA UPS is a line-interactive UPS designed to provide short-term backup power and protection against brownouts, surges, and outages. It’s suitable for basic desktops, network equipment, and small electronics.
⚡ Capacity
Rated power:1200 VA ≈ 600 W output capacity — meaning it can support loads up to about 600 W maximum.
🔌 Input Specifications
Nominal Voltage: 220 VAC
Input Voltage Range:145–280 VAC — allows UPS to tolerate common mains voltage fluctuations without switching to battery.
🔋 Output (Battery Mode)
Output waveform:Modified sine wave (common in budget UPS units).
Transfer time: Typically < 6 ms — the time it takes to switch from mains power to battery when a blackout occurs.
Output regulation: ~±10 % of rated voltage in battery mode.
🔋 Battery Details
Battery type: Lead-acid, sealed
Configuration:12 V 7.2 Ah × 1 battery (1 battery inside).
Charging time: ~6 hours to reach ~90 % capacity from discharge.
(This short description refers to typical specs — actual battery Ah may vary slightly by seller.)
💡 Indicators & Alarms
LED indicators:
Green when on AC mains
Red flashing when running on battery
Audible alarms for:
Low battery
Overload
Fault conditions
🛡️ Protection Features
Overload protection
Deep discharge protection
Over-charge protection
Cold start capability (can power on on battery without mains)
Compatible with generator power (auto charging)
📏 Physical & Environmental
Dimensions: ~410 × 408 × 313 mm
Weight: ~10.5 kg
Operating temp: ~0–40 °C
Humidity: 0–90 % non-condensing
📌 Good For
✅ Desktop computers (within wattage limit) ✅ Routers, modems, CCTV systems ✅ Short blackout tolerance and safe shutdown time ✅ Basic home and office electronics protection
❗ Limitations
❌ Not a pure sine wave UPS — may cause inefficiency or noise in sensitive electronics. ❌ Short backup time (seconds to minutes) under moderate load — not for long outages. ❌ Not suitable for high-power or critical medical/industrial devices unless specified.

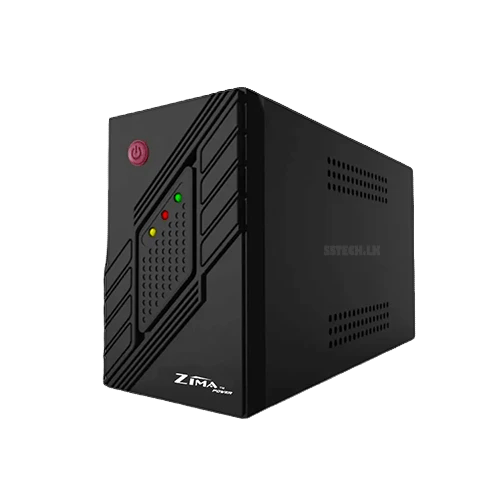

ZIMA 1200V Ups
රු19,500.00
2 YEARS WARRANY
Out of stock
Description
🔋 Overview
This ZIMA 1200VA UPS is a line-interactive UPS designed to provide short-term backup power and protection against brownouts, surges, and outages. It’s suitable for basic desktops, network equipment, and small electronics.
⚡ Capacity
Rated power: 1200 VA ≈ 600 W output capacity — meaning it can support loads up to about 600 W maximum.
🔌 Input Specifications
Nominal Voltage: 220 VAC
Input Voltage Range: 145–280 VAC — allows UPS to tolerate common mains voltage fluctuations without switching to battery.
🔋 Output (Battery Mode)
Output waveform: Modified sine wave (common in budget UPS units).
Transfer time: Typically < 6 ms — the time it takes to switch from mains power to battery when a blackout occurs.
Output regulation: ~±10 % of rated voltage in battery mode.
🔋 Battery Details
Battery type: Lead-acid, sealed
Configuration: 12 V 7.2 Ah × 1 battery (1 battery inside).
Charging time: ~6 hours to reach ~90 % capacity from discharge.
(This short description refers to typical specs — actual battery Ah may vary slightly by seller.)
💡 Indicators & Alarms
LED indicators:
Green when on AC mains
Red flashing when running on battery
Audible alarms for:
Low battery
Overload
Fault conditions
🛡️ Protection Features
Overload protection
Deep discharge protection
Over-charge protection
Cold start capability (can power on on battery without mains)
Compatible with generator power (auto charging)
📏 Physical & Environmental
Dimensions: ~410 × 408 × 313 mm
Weight: ~10.5 kg
Operating temp: ~0–40 °C
Humidity: 0–90 % non-condensing
📌 Good For
✅ Desktop computers (within wattage limit)
✅ Routers, modems, CCTV systems
✅ Short blackout tolerance and safe shutdown time
✅ Basic home and office electronics protection
❗ Limitations
❌ Not a pure sine wave UPS — may cause inefficiency or noise in sensitive electronics.
❌ Short backup time (seconds to minutes) under moderate load — not for long outages.
❌ Not suitable for high-power or critical medical/industrial devices unless specified.
Additional information
ZIMA
